Product Description

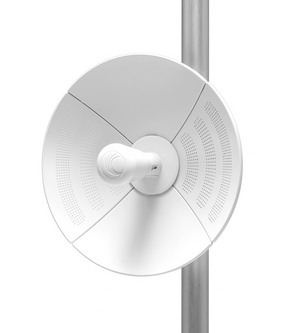

ePMP Force 190
The ePMP™ Force 190 provides up to 200 Mbps throughput and low latency with a high gain antenna in a compact design.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.
FEATURES:
- Cambium Networks’ ePMP Force 190 will lower the logistical cost of ownership by reducing shipping costs with its highly compact packaging.
- The ePMP Force 190 is designed to operate in high interference environments and provides throughput of up to 200Mbps with bi-directional traffic of real user data.
- Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.
- QoS management offers an outstanding quality for triple play services – VoIP, video and data and provides three levels of trafficpriority.
- Long deployment range is enabled by a high gain antenna combined with 27dBm of transmit power.
- This platform is for the user base that wants a smaller on premises footprint while enabling high gain.
- Install is a breeze with the easy to install mount, capable of pole and wall mounting.
ePMP Force 190 Specifications | |
---|---|
Spectrum | |
Channel Spacing | Configurable on 5 MHz increments |
Frequency Range | 4910 - 5970 MHz, 4.9 only for ROW |
Channel Width | 5 | 10 | 20 | 40 MHz |
Interface | |
MAC (Media Access Control) Layer | Cambium proprietary |
Physical Layer | 2x2 MIMO/OFDM |
Ethernet Interface | 10/100 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
Protocols Used | IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
Network Management | HTTPs, SNMPv2c, SSH |
VLAN | 802.1Q with 802.1p priority |
Performance | |
ARQ | Yes |
Nominal Receive Sensitivity (w/FEC) @20MHz Channel | MCS0 = -92 dBm to MCS15 = -68 dBm (per branch) |
Nominal Receive Sensitivity (w/FEC) @40MHz Channel | MCS0 = -89 dBm to MCS15 = -65 dBm (per branch) |
Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS15 (64QAM 5/6) |
GPS Synchronization | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority |
Transmit Power Range | -15 to +27 dBm (combined, to regional EIRP limit) (1 dB interval) |
Antenna Gain | 22dBi |
Physical | |
Surge Suppression | 1 Joule Integrated |
Environmental | IP55 |
Temperature | -30°C to +50°C (-22°F to +122°F) |
Wind Survival | 125 km/hour (78 mi/hour) |
Weight | 1.0 kg (2.2 lbs) |
Dimensions (Dia x Depth) | 35 cm x 28 cm (13.5 in x 11.2 in) |
Pole Diameter Range | 3.8 cm – 6.4 cm (1.5 in – 2.5 in) |
Power Consumption | 8 W Maximum, 5 W Typical |
Input Voltage | 12 to 30 V |
Security | |
Encryption | 128-bit AES (CCMP mode) |
Certifications | |
FCCID | Z8H80FT0031 |
Industry Canada Cert | 109W-0031 |
CE | 5 GHz EN 302 502 v1.2.1 5 GHz: EN 301 893 v1.7.1 |
