Product Description

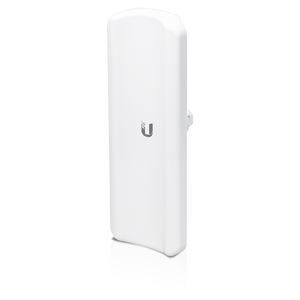

Ubiquiti Lite AP GPS 90 Degree Sector Antenna. The Lite AP GPS features an integrated high-performance 90 degree sector antenna and GPS Sync for scale-able, cost-effective airMAX AC networks. LiteAP GPS supports GPS Sync for faster, more scalable, carrier-class networks.
Features
- Quick Installation
- Versatile Mounting
- Efficient Design
- Gigabit Ethernet
Specifications
- Dimensions (mount not included): 360.98 x 124.57 x 71.28 mm (14.21 x 4.90 x 2.81")
- Weight (no mount): 752 g (1.66 lb)
- Mounting Kit: Pole Mounting Kit (Included)
- Networking Interface: (1) 10/100/1000 Ethernet Port
- Memory: DDR2 64 MB
- Max. Power Consumption: 7.1W
- Max.TX Power: 25 dBm
- Antenna Gain: 17dBi
- Power Supply: 24V, 0.3A PoE Adapter (Included)
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Processor Specs: Atheros MIPS 74Kc, 533 MHz
- Shock and Vibration: ETSI300-019-1.4
- ETSI Specification: EN 302 326 DN2
- ESD/EMP Protection: ± 24 kV Contact / Air
- RoHS Compliance: Yes
- Operating Temperature: -40 to 70° C (-40 to 158° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: FCC, IC, CE
PRODUCT SPECIFICATIONS
| Lite AP GPS | |
|---|---|
| Dimensions (Mount Not Included) | 360.98 x 124.57 x 71.28 mm (14.21 x 4.90 x 2.81") |
| Weight (Mount Not Included) | 752 g (1.66 lb) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Antenna Gain | 17 dBi |
| Max. Power Consumption | 7.1W |
| Max. TX Power | 25 dBm |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 - 26VDC |
| ESD/EMP Protection | ± 24kV Contact / Air |
| Shock and Vibrations | ETSI300-019-1.4 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N @ 200 km/h (17.3 lbf @ 125 mph) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
|---|---|
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 |
| Worldwide | 5150 - 5875 |
| Management Radio (MHz) | |
|---|---|
| US/CA | 2412 - 2462 |
| Worldwide | 2412 - 2472 |
Product Includes
- (1) LAP-GPS Antenna
- (1) User Manual
- (1) Ball Joint Mount
- (1) Metal Strap
- (1) Gigabit PoE (24V 0.3A) with mounting bracket
- (1) Power Cord
