Product Description

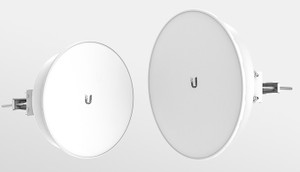

With built-in support for RF isolation, the PBE-5AC-400-ISO-US 5 GHz airMAX ac Bridge with RF Isolated Reflector from Ubiquiti Networks is designed to provide a tighter beamwidth signal directly to the signal's destination. Couple the tighter beamwidth with improved noise isolation and the recipient of the signal benefits from a stronger, more reliable network connection. Additionally, this airMAX ac Bridge also features Ubiquiti's own InnerFeed technology which combines the radio and the feedhorn of the antenna for easier installation while eliminating the need for a cable.
The 5 GHz airMAX Bridge features an innovative design complete with a metal plated interior rear housing, built-in mechanical tilt, and convenient installation. Once installed the rugged housing helps the airMAX Bridge to withstand the elements thanks to the outdoor UV stabilized plastic enclosure.
Hardware
Improved Noise Immunity
The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ac ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Radio Design
Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Innovative Mechanical Design
Metal-plated interior of rear housing
Enhances RF shielding
Built-in mechanical tilt
The mounting bracket offers ± 20° of tilt
Convenient pole-mounting
Only a single wrench is needed to mount the PowerBeam ac ISO on a pole
Enhances RF shielding
Built-in mechanical tilt
The mounting bracket offers ± 20° of tilt
Convenient pole-mounting
Only a single wrench is needed to mount the PowerBeam ac ISO on a pole
Industrial-Strength Construction
Fasteners
GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners
Dish and brackets
Made of galvanized steel that is powder-coated for superior corrosion resistance
Protective Radome
Shields the radio from nature's harshest elements
GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners
Dish and brackets
Made of galvanized steel that is powder-coated for superior corrosion resistance
Protective Radome
Shields the radio from nature's harshest elements
RF Isolation
The integrated isolator design spatially filters out interference, so the PowerBeam ac ISO delivers improved noise immunity in co-location deployments.
Software - airOS7
Powerful Wireless Features
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security
Usability Enhancements
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including Ethernet Cabling Test, RF Diagnostics, and airView Spectrum Analyzer
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including Ethernet Cabling Test, RF Diagnostics, and airView Spectrum Analyzer
Advanced RF Analytics
airMAX ac devices feature a multi-radio architecture to power the RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with comprehensive RF analytics.
Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyzer of airOS V7.
Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyzer of airOS V7.
Real-Time Reporting
The Main tab displays the following RF information:
• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Carrier to Interference-plus-Noise Ratio (CINR) histograms
• Signal-to-Noise Ratio (SNR) time series plots
• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Carrier to Interference-plus-Noise Ratio (CINR) histograms
• Signal-to-Noise Ratio (SNR) time series plots
Spectral Analysis
airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:
• Constantly monitors environmental noise
• Collects energy data points in real-time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data.
• Waterfall Aggregate energy collected for each frequency
• Waveform Aggregate energy collected
• Ambient Noise Level Background noise energy shown as a function of frequency
Available with a firmware upgrade to airOS v7.1, airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys
• Constantly monitors environmental noise
• Collects energy data points in real-time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data.
• Waterfall Aggregate energy collected for each frequency
• Waveform Aggregate energy collected
• Ambient Noise Level Background noise energy shown as a function of frequency
Available with a firmware upgrade to airOS v7.1, airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys
Technology
Intelligent QoS
Priority assigned to voice/video for seamless streaming
Scalability
High capacity and scalability
Long Distance
Capable of high-speed, carrier-class links
Enhanced Performance
airMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology
Improved Throughput
airMAX ac supports high data rates, which require dense modulation:
256QAM - a significant increase from 64QAM, which is used in airMAX.
With their use of proprietary airMAX ac technology, airMAX ac products support up to 450+ Mbps real TCP/IP throughput - up to triple the throughput of standard airMAX products
256QAM - a significant increase from 64QAM, which is used in airMAX.
With their use of proprietary airMAX ac technology, airMAX ac products support up to 450+ Mbps real TCP/IP throughput - up to triple the throughput of standard airMAX products
Innovative Mechanical Design
The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.
Superior RF Isolation
Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
