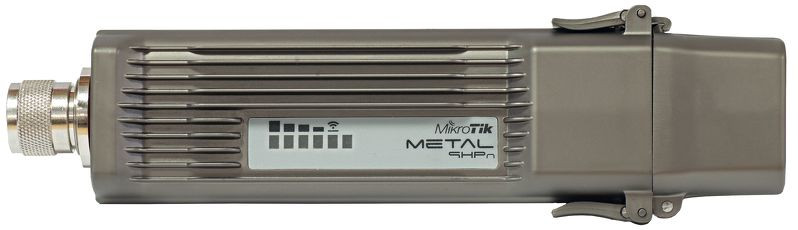

RBMetal9HPn is our first product for 900MHz frequency. With the same case as our Metal2 and Metal5 models, it's completely waterproof, rugged and high powered. RBMetal9HPn is equipped with RouterOS L4 license (AP, point-to-point or CPE).
Metal9HPn is compatible only with another Metal9HPn, and available only with US type power plug. It will not work with any other 900MHz manufacturer product.
Supported frequencies: 902-927MHz (Selectable center frequencies 907 to 922)
Specifications
| Details |
|---|
| Product code | RBMetal9HPn |
| Architecture | MIPSBE |
| CPU | AR7241 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Dimensions | 177x44x44mm, 193g |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $129.00 |
Powering
| Details |
|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 10 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-32 V |
Wireless specifications
| Details |
|---|
| Wireless 900 MHz Max data rate | 150 Mbit/s |
| Wireless 900 MHz number of chains | 1 |
| Wireless 900 MHz standards | 802.11b/g/n |
| Wireless 900 MHz chip model | AR9283 |
| Wireless 900 MHz generation | Wi-Fi 4 |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports | 1 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details |
|---|
| Certification | FCC |
Wireless specifications
| 900 MHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 27 | -93 |
| 11MBit/s | 27 | -93 |
| 6MBit/s | 27 | -93 |
| 54MBit/s | 24 | -75 |
| MCS0 | 27 | -93 |
| MCS7 | 23 | -71 |
Included parts:
- Metal rings (two)
- Angled N connector
- PoE injector
- Plastic zip tie
- 24V 0.8A power adapter US
)
