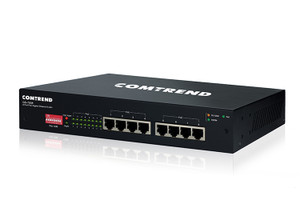

Comtrend’s GS-7508 8-Port PoE+ Gigabit Ethernet Switch delivers data and power to network devices in a flexible and optimized solution. The GS-7508 consists of a durable metal casing with energy-efficient ports. Boasting 130 watts total power budget, this series can supply even your most power-intensive devices. The GS-7508 offers cost savings and ease of installation, making it the ideal solution for small scale PoE projects such as deploying security cameras, VoIP phones and access points.

Key Benefits

Expand to a Gigabit Network:
The GS-7508 allows for an easy way to transition your network to a PoE Gigabit network. Gigabit ports are 10x faster than standard ports.

Connect Multiple High-Powered Devices:
Each port can supply up to 30 watts of power. The 130 watts total power budget ensures you always have enough power.

Energy Efficient:
The GS-7508 supports IEEE802.3az for eco-friendly Ethernet function.

Connect & Go:
With no configuration needed, the GS-7508 is plug and play.

Features

• 8 Gigabit Ethernet PoE LAN Ports
• PoE Standard: IEEE 802.3af/at
• PoE Capable Ports: 1-8
• PoE Output Power Capacity: Maximum Output: 30 watts Per Port, 130 watts Total Power Budget
• Switching Capability: 16Gbps Bi-Direction
• IEEE 802.3az Compliant

Specifications

Hardware

• 8 x PoE 10/100/1000Mbps Ports
• PoE Power Budget: 130W
• Maximum Output: 30 watts Per Port

HW Feature

• IEEE802.3 10BASE-T
• IEEE802.3u 100BASE-TX
• IEEE802.3ab 1000BASE-T
• IEEE802.3az
• IEEE802.3at
• IEEE802.3af
• MAC Address Table: 4K
• Jumbo Frame: 9K

Power Input

• Internal Power Supply
• Input: 100-240V AC
• Maximum Power Draw: 160W

 Dimension

• 10.40 x 7.25 x 1.75in (WxDxH)
• 265 x 184 x 44mm (WxDxH)

Temperature

• Operating: 32~104°F (0~40°C)
• Storage: -40~158°F (-40~70°C)

 Humidity

• Operating: 10% ~ 90% RH (non-condensing)
• Storage: 5% ~ 90% RH (non-condensing)

EMI/Safety

Safety

• CE, LVD

EMC

• FCC Part15, CE (Class A)
