Product Description

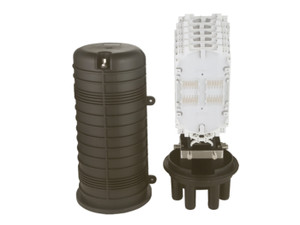

Dome Type Fiber Optic Splice Closure 144 Cores
Fiber optic splice closure is mainly used for protecting the fiber optic junction between two cables and reserve a section of fiber optic for maintenance in the box. The box has good leak-proof, anti-water and damp-proof feature and its power line is corrosion resistant.
There are two types of the junction box, central and terminal one. The central type is used in the central part of the line to protect the two butted cables while the terminal type is used in the end of the line for branching in the cable line or protecting the connection of the fiber optic in the cable and the jumper.
144 Core Fiber Optic Closure
The Splice closure is an indispensable equipment used in Fiber Communication System, play the roles in sealing, protection, installation of fiber connector head and storage. It is applicable well in cable splicing and with the protection function on fiber optic connect head.
| Product Name | 144 core fiber optic closure |
| Shape | Total enclosed structure, be in nice shape |
| size | 600mm(H)*φ200 |
| Weight | 3.2KG |
| Material | PP+GF |
| Material characteristic | 1.wet-proof, water-proof, dust-proof, protection level up to IP68 2.Construction-lightweight plastic offers strength 3.Resistance to chemical and U.V attack4.aerial mounting,pole mounting |
| Specification | JZ-10056 |
| Material | PP+GF |
| Entry ports | 1 |
| Outlet ports | 6 |
| Cores | 288 |
| Color | Grey black |
| Ip degree | 68 |
| inlet cable dimension | oval port 40x60mm |
| outlet cable dimension | round port 18mm |
| Installation method | aerial mounting,pole mounting |
| Dimension | 600mm(H)*φ200 |
| No. of splice tray | 6 |
| capacity per tray | 48 |
Features:
1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Application:
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks
