Product Description

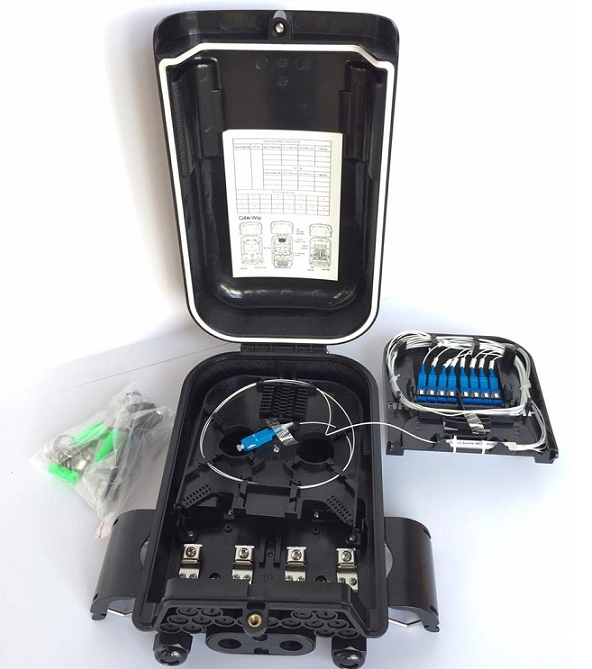

16 Core Fiber Optic Distribution Box - 1x16 MiniAPC with PLC splitter
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
* High quality PC+ ABS material used ensures the body strong and light..
* Wet-proof, water-proof, dust-proof, anti-aging
* Easy installations: Ready for wall mount – installation kits provided
* Space saving: Double-layer design for easier installation and maintenances
* Easy installations: Ready for wall mount – installation kits provided.
* Protection level up to IP65
* Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
* Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
* Cable,pigtails,patch cords are running through own path without disturbing each other, mini PLC type SC adaptor installation, easy maintenance.…
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
* High quality PC+ ABS material used ensures the body strong and light..
* Wet-proof, water-proof, dust-proof, anti-aging
* Easy installations: Ready for wall mount – installation kits provided
* Space saving: Double-layer design for easier installation and maintenances
* Easy installations: Ready for wall mount – installation kits provided.
* Protection level up to IP65
* Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
* Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
* Cable,pigtails,patch cords are running through own path without disturbing each other, mini PLC type SC adaptor installation, easy maintenance.…
| Product Name | Fiber Optic Distribuion Box |
| Material | PC+ABS |
| Dimensions | 287*172*102mm |
| Inlet/Outlet ports | 4/16 |
| Max inlet cable diameter | mid span: 16mm ; cable gland: 12mm |
| Heat shrink capacity | 16 |
| PLC type | mini PLC |
