Product Description

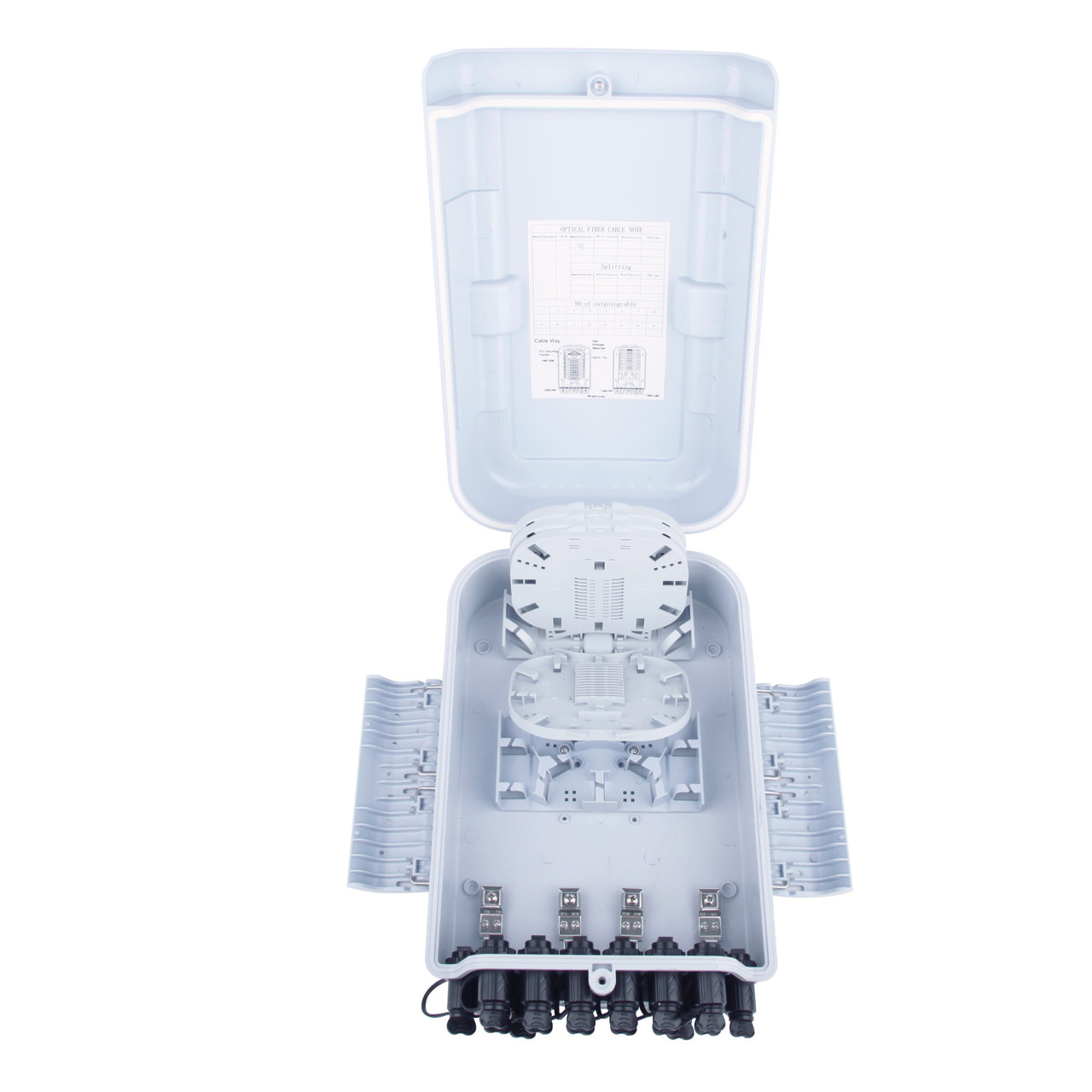

This model JZ-1365-16T is a fiber optical distribution box that provides a cost-effective secure solution for the feeder cable to connect with drop cable in FTTx communication network system. It is designed to accommodate one mid-span cable as feeder cable and 2 glands, it uses common drop cable, common SC connectors as outlets and use Jinze patented T connector cover as a protection of the outlet connectors.
TECHNICAL SPECS:
Fiber storage/splicing areas designed
Positive fiber management (30mm min bend radius)
IP65 rating
Secure, with anti-theft locking mechanism
Pole or building facade mounting features
Range of colors
Grounding strap provided
Adaptor version available
Technical Data
| Dimensions | 353*212*106 (only the box) |
| Number of ports | 1 Min-span inlet port, 2 glands and 16 outlet ports |
| Maximum number of splices | 12 each |
| Number of Splice tray | 3 or 12 |
| Suitable connector type | SC/ LC/FC |
| Maximum number of adaptors | 16 |
| Color | Black/White/Gray |
| Maximum inlet cable diameter (single port) | 14 mm |
| IP rating | IP 65
|
