Product Description

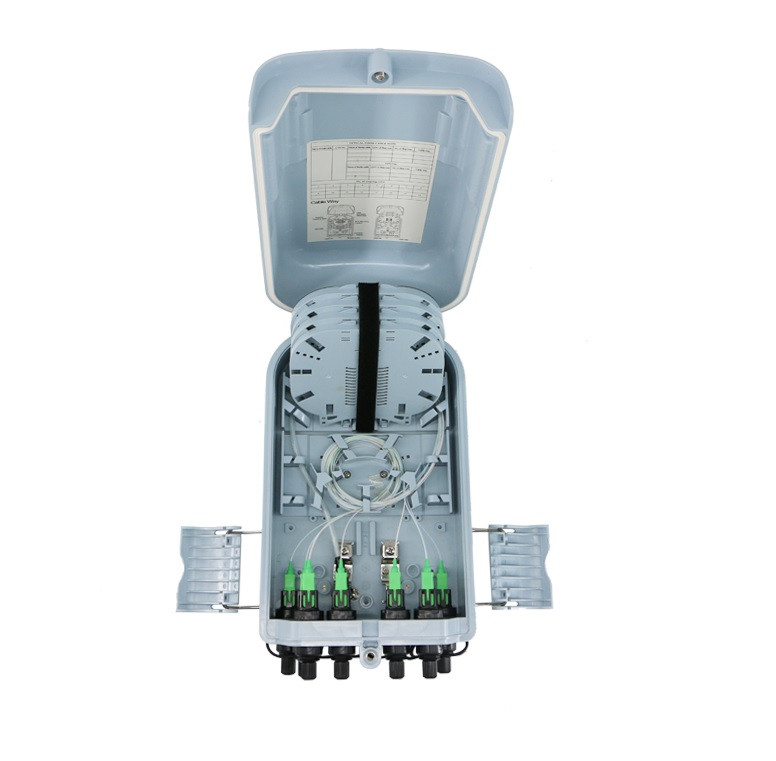

8 Core FTTH Outdoor Fiber Distribution Box
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting,
distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
| Product Name | 8 core fiber optic distribution box(termination box) |
| Shape | Total enclosed structure, be in nice shape |
| size | 287mm(H)*172mm(W)*102mm(D) |
| Weight | 1.4KG |
| Material | PC+ABS |
| Material characteristic | 1.wet-proof, water-proof, dust-proof, protection level up to IP65 2.Construction-lightweight plastic offers strength 3.Resistance to chemical and U.V attack4.Wall mounting or pole mounting. |
| Specification | JZ-1361-8Q | JZ-1361-8H | JZ-1361-8M |
| Material | PC+ABS | ||
| Entry ports | 1 Midspan+2 Cable gland( total 4 ports) | 1 Midspan( total 2 ports) | 1 Midspan( total 2 ports) |
| Outlet ports | 8 | 8 | 8 |
| Cores | 8 | 8 | 8 |
| Color | Grey black or white(optional) | ||
| Ip degree | 65 | 65 | 65 |
| Adapter installation | / | / | / |
| PLC installation | support(1x8) | support(1x8) | support(1x8) |
| PLC type | Insert type | mini type | insert type |
| inlet cable dimension | midspan(13.5mm)/cable gland(12mm) | midspan(13.5mm) | midspan(13.5mm) |
| outlet cable | 2x3 drop cable & <4.5 round cable | Outdoor Patch cord(RRU RRH and Baseband unit) | Outdoor Patch cord(RRU RRH and Baseband unit) |
| Installation method | wall mounting or pole mounting | ||
| Dimension | 287x172x102mm | ||
| No. of splice tray | / | 4 | / |
Accessories
1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 8 pieces
5. Key :1 piece
6. Protection tube: 1 piece
7. pole mounting accessories: 1 set(optional)
