Product Description

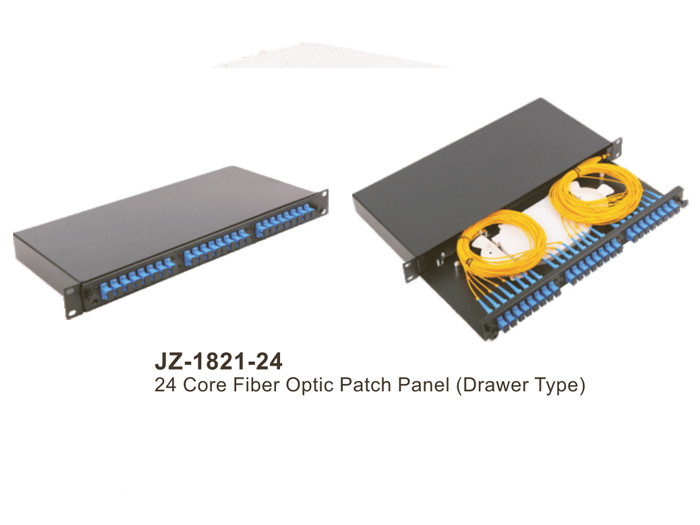

24 core draw type 1U FDU patch panel
24 Port Fiber Optic Patch Panel can be applied in the storage of indoor optical cable, distribution and terminal connection of various
optical fiber system, Available for the rack installation of adaptors for FC,SC,ST,LC and so on. The case body is made from cold
rolled steel sheet, available for adaptors installation such as FC, SC, ST, LC etc.
| Product Name | 24 core draw type 1U FDU patch panel |
| Shape | Space saving, high-density 1U |
| size | 48.2*20.7*4.4(CM) |
| Weight | 2kg |
| Material | cold-rolled sheet |
| Material characteristic | 1.Easy to installation and maintenance 2.can be installed SC FC ST LC and other type adapter.3.thickness:1.0mm |
| Specification | JZ-1821-24 |
| Material | cold-rolled sheet |
| ports | 24 |
| Cores | 24 |
| Color | black |
| Adapter installation | 24 (SC LC FC ) |
| Pigtail installation | support |
| Dimension | 48.2*20.7*4.4(CM) |
| No. of splice tray | 1 |
Accessories
1. Screws : 2 pieces(standard)
2. Heat shrink protective sleeves: (optional)
3. adapter:(optional)
4.pigtail(optional)
Features:
1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Application:
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks
