Product Description

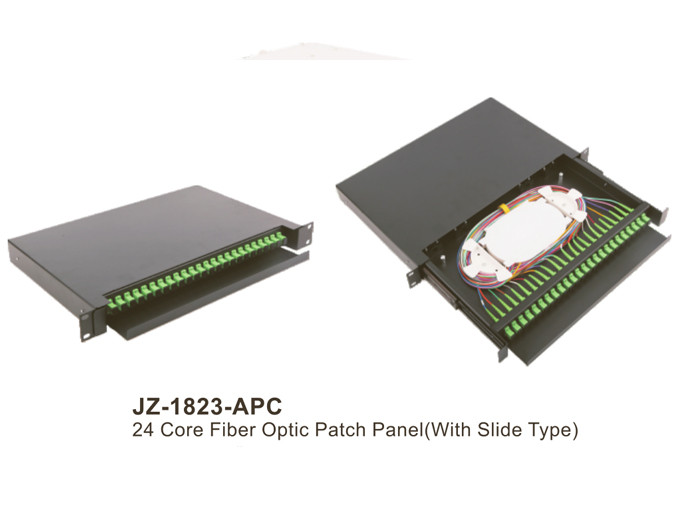

1U 24 core optical fiber patch panel with 24pcs SC APC SX adapters
Rack mount patch panel is mainly used for connection and storage between optical fiber cable and pigtail in equipment. The box body is made of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation is convenient.
Product data
Standard: 19" rack mount dimension.
Cable entrance: 4 ports, ⌀ 25mm.
With cable lead-in, fixation and protection devices.
There is enough room for fiber storage, ensure the bending radius is 15 times diameter of the cable.
Providing relevant accessories.
Cable entrance: 4 ports, ⌀ 25mm.
With cable lead-in, fixation and protection devices.
There is enough room for fiber storage, ensure the bending radius is 15 times diameter of the cable.
Providing relevant accessories.
Features
High quality cold rolled sheet forming, electrostatic powder spraying technology, smooth surface, not east to rust.
High strength sheet metal, long-term using is not easy to deformation.
The edges of metal parts are designed with rounded corners to avoid damage to cables.
The bottom plate is designed with sliding design, for the patch panel already installed on the cabinet, the wiring can be adjusted without removing the patch panel.
Applications
Sliding rack mount patch panel integrates the 3 functions of fiber fusion, storage and distribution.
It's used widely in local end main cable net of fiber optic communication area. And suitable for the FTTB, FTTH system.
Environment
The operating and storage temperature: - 45 ~ + 80 ℃.
Tolerable humidity: <95%.
The voltage resistance between the cable grounding device in the shell and the shell is >3000V(DV), which is tested in 1 minute without breakdown and no flashover.
