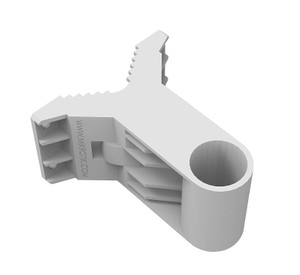

The MikroTik quickMOUNT is a basic wall mount adapter for smaller point to point or sector antennas. The quickMOUNT makes it possible to turn an antenna 190deg. With the quickMOUNT it is possible to simultaneously mount two SXTs, creating an access point repeater and larger sector coverage. You can use the quickMOUNT with any pole mountable device that weighs less than 3lbs.

Product Features:

• Simple design
• Supports SXT, Omnitik, BaseBox or any other pole mountable device
• Supports up to two SXT units
• The adapter is very durable due to it’s special material composite called anvilNITE.

Product Specifications:

• Dimensions: 3.78 x 4.23 x 2.2in (96 x 107.5 x 56mm)
• Tube diameter: 1.38in (35mm)
• Maximum supported antenna weight: 3.31lbs (1.5kg)
• Angle turn: 190deg
• Operating temperature: -40 to +104deg F (+/-40deg C)
• Maximum wind load: 100N

Product Compatibility:

• MikroTik SXT series
• MikroTik OmnTik
• Various pole mountable antennas

Product Includes:

• 1 x QM wall mount
• 1 x Mounting ring
• 1 x K-41 screw kit
