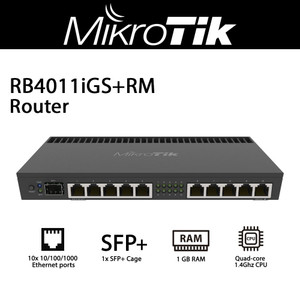

The RB4011 uses the amazingly powerful quad core Cortex A15 chip from Annapurna labs, an Amazon company, same as in our carrier grade RB1100AHx4 unit. The CPU supports IPsec hardware acceleration, there is 1GB of RAM, so this device will easily handle any task you have configured RouterOS to perform. All of this power, in a compact and professional looking solid metal enclosure in matte black.
In addition to the ten 1 Gbps ethernet ports, an SFP+ port provides optional 10 Gbps connectivity through an SFP+ module (not included). All of this power, in a compact and professional looking solid metal enclosure in matte black. The ethernet model includes two rackmount ears, that will securely fasten the unit in standard 1U rack space.
Specifications
| Details |
|---|
| Product code |
RB4011iGS+RM |
| Architecture |
ARM 32bit |
| CPU |
AL21400 |
| CPU core count |
4 |
| CPU nominal frequency |
1400 MHz |
| Dimensions |
228 x 120 x 30 mm |
| License level |
5 |
| Operating System |
RouterOS |
| Size of RAM |
1 GB |
| Storage size |
512 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$199.00 |
Powering
| Details |
|---|
| PoE in |
Passive PoE |
| PoE in input Voltage |
18-57 V |
| PoE out |
Passive PoE up to 57V |
| PoE-out ports |
Ether10 |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max out per port output (input > 30 V) |
400 mA |
| Max out per port output (input < 30 V) |
600 mA |
| Max total out (A) |
600 mA |
| Max power consumption |
33 W |
| Max power consumption without attachments |
18 W |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports |
10 |
Fiber
Peripherals
Other
| Details |
|---|
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
|---|
| Certification |
CE/RED, EAC, ROHS |
UPC: 0708747435757
)
