Product Description

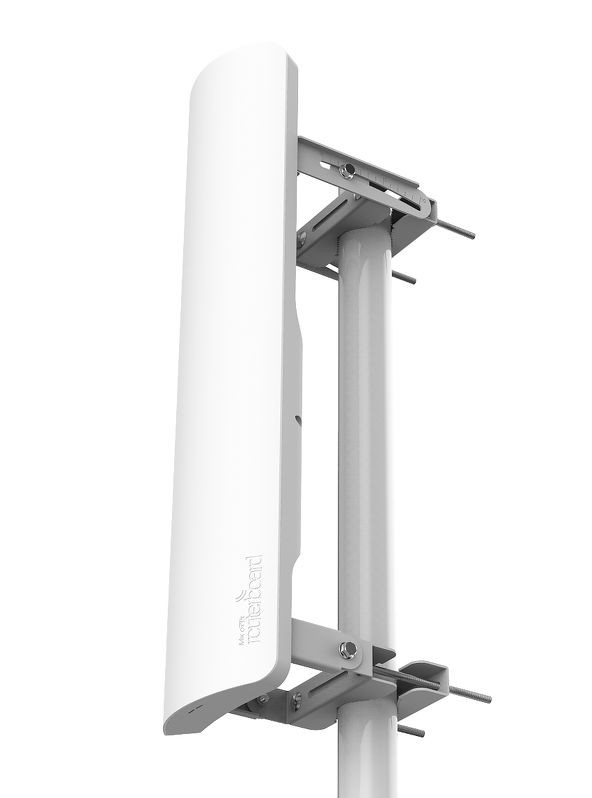

mANTBox 19s
The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.
mANTBox 19s comes with 19dBi 120 degree sector antenna.
We have two versions available - RB921GS-5HPacD-19S (International) and RB921GS-5HPacD-19S-US (USA). RB921GS-5HPacD-19S-US (USA) is factory locked for 5.17 - 5.25 GHz and 5.725 - 5.835 GHz frequencies. This lock can not be removed. RB921GS-5HPacD-19S (International) supports 5.17 - 5.835 GHz range.
Product specifications
| Details | |
|---|---|
| Product code | RB921GS-5HPacD-19S |
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 1 |
| Wireless standards | 802.11a/n/ac |
| Wireless chip model | QCA9882 |
| PoE in | Yes |
| Supported input voltage | 8 V - 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 152 x 598 x 78 mm |
| Operating System | RouterOS |
| Tested ambient temperature | -30 + 70 C |
| License level | 4 |
| Antenna gain DBI | 19 |
| Max Power consumption | 13W |
| SFP ports | 1 |
| Number of chains | 2 |
| Storage type | NAND |
| Storage size | 128 MB |
