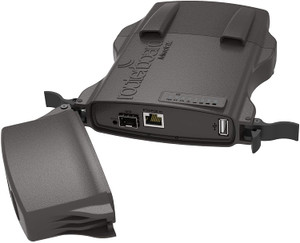

The MikroTik NetMetal 5 Triple Chain with miniPCI-e slot in a waterproof enclosure, is so robust, it withstand even the toughest weather conditions. It is easy to use and can be opened and closed with one hand, no tools needed. The solid aluminum housing serves as a reliable heat sink for its high output power radio and prevents RF and power leakage. By supporting the 802.11ac wireless standard, the MikroTik NetMetal 5 Dual Chain with miniPCI-e slot allows the use of 256-QAM modulation and 20/40/80MHz channels. With its enormous improvements in speed 802.11ac opens a Pandora Box with all new possibilities.
The MikroTik NetMetal Triple Chain with miniPCI-e slot features:
• a powerful processor 720MHz CPU
• 128MB DDR2 RAM memory
• One Gigabit port with Auto-MDI/X
• 802.11ac radio module
• SFP cage
• USB 2.0 port
• Consumption: 23W
• Three (3) RP-SMA connectors for external antenna.
• MikroTik RouterOS, Level4 license, free product lifetime upgrades
TX/RX at MCS0: 32dBm / -96dBm
TX/RX at MCS7: 29dBm / -77dBm
TX/RX at MCS9: 24dBm / -72dBm
TX/RX at 6Mbit: 33dBm / -96dBm
TX/RX at 54Mbit: 29dBm / -81dBm
- RB922UAGS-5HPacT-NM-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB922UAGS-5HPacT-NM (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Accessories Included:
• One (1) 24V 1.2A Power Adapter
• One (1) Gigabit PoE Injector
• One (1) DIN rail mount
• One (1) mounting metal ring
• Two (2) plastic mounting loops
• miniPCIe mounting screws
Specifications
| Details |
|---|
| Product code | RB922UAGS-5HPacT-NM |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 143x247x48mm (PCB) |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $159.00 |
Powering
| Details |
|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 23 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details |
|---|
| Wireless 5 GHz Max data rate | 1300 Mbit/s |
| Wireless 5 GHz number of chains | 3 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Wireless 5 GHz chip model | QCA9880 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details |
|---|
| SFP DDMI | yes |
| SFP ports | 1 |
Peripherals
| Details |
|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 33 | -96 |
| 54MBit/s | 29 | -81 |
| MCS0 | 32 | -96 |
| MCS7 | 29 | -77 |
| MCS9 | 24 | -72 |
)
