Product Description

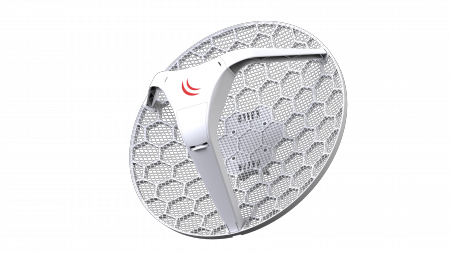

LHG 5
The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
We have two versions available.
- RBLHG-5nD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RBLHG-5nD (International) supports 5150MHz-5875MHz range.
Product specifications
| Details | |
|---|---|
| Product code | RBLHG-5nD |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| Wireless chip model | AR9344 |
| Wireless standards | 802.11a/n |
| PoE in | Yes |
| Supported input voltage | 11 V - 30 V |
| Dimensions | Ø 391 x 222 mm; package 450 x 450 x 145 mm |
| Operating System | RouterOS |
| Tested ambient temperature | -40 to 70° C |
| License level | 3 |
| Antenna gain DBI | 24.5 |
| CPU | AR9344 |
| Max Power consumption | 6W |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
