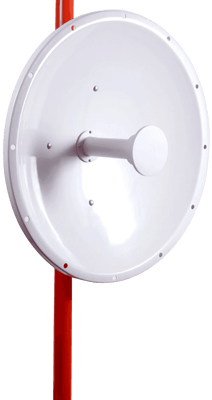

Product Description
A medium distance link ideal for WISP growths of up to 70 km on your PTP trunks.
Highlights:
- The widest frequency range in the market
- Connectivity with other brands: Ubiquiti, Mimosa, Cambium, etc.
- 45 ° Slant type polarization for reduction of noise levels
- Highly robust and stable
- Customizable: Wind and corrosion resistance could be increased to order in addition to customizable mounting for all types of towers.
Features
- High-precision parabolic reflector
- Extruded aluminum manufacturing
- V/H dual-polarization
- Includes mounting
- Includes support for universal radio
- 45° Polarization
Technical specifications
Compatible with radios:
Electrical Features
- Frequency range: 4.9 - 6.2 GHz
- Diameter (ft): 3.28084
- Antena type: directional
- Connector type: N - Female
- Gain (dBi):
- Low – 33.3
- Mid – 34.4
- High – 35.3
- VSWR: 1.03
- HPOL beamwidth: 3.84°
- VPOL beamwidth: 3.84°
- Return loss: 14 dB
- ISO: 25 dB
- F/B Radio: 36 dB
- XPD: 30 dB
- Dual polarization: vertical and horizontal
Mechanical Specifications
- Wind resistance speed (mph): 74.56
- Azimuth adjustment: 360°
- Elevation adjustment: +-15
- Suggested mast diameter: 1.97 – 2.75", 3.94 - 4.48" (50 – 70, 100 - 114 mm)
- Operating temperature: from -49 ~ 140 F
- Gross weight: 22.05lb (10 kg)
