Product Description
Network operators are challenged to deliver reliable connectivity in overcrowded RF environments. As available spectrum becomes more congested, having the right broadband access solution that allows network operators to deliver efficient quality cost effectively, is vital for all types of deployments.

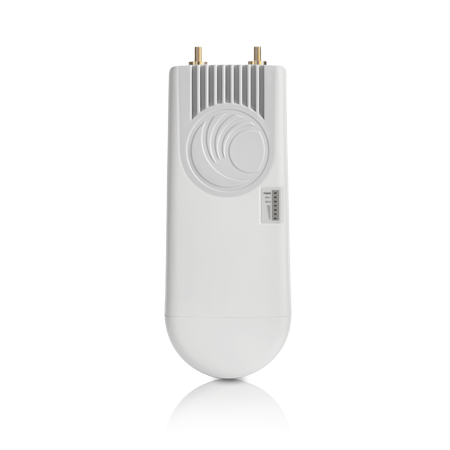

Maximize network performance using ePMP software with eFortify™ and eCommand™ features and tools. eFortify enhances the performance of the ePMP 1000 in high noise environments. eCommand provides a suite of management features and tools to assist network operators in planning, provisioning and monitoring of their network. The ePMP 1000 GPS Sync Radio provides flexibility to grow from a single sector deployment to complex multi-sector / multi-site deployments, as the subscriber base expands.
Available in the 5 GHz frequency band, the platform delivers high performance and reliable broadband connectivity to customers, with services such as VoIP, video and data. The ePMP 1000 is the most effective connectivity solution for reaching the under-and unconnected around the world.
Key Advantage:
- Innovative GPS Sync Technology: enables unparalleled spectrum efficiency. This allows for the configuration of more subscribers in your network while preserving consistency and quality of service in spectrum-constrained environments.
- Quality Of Service (QOS): allows you to confidently offer triple play services – VoIP (Voice over IP), video and data.
- Proven Reliability: has created an unsurpassed connectivity standard in many industries that depend on fixed wireless broadband.
- Powerful Features: The Cambium Networks ePMP 1000 GPS Sync Radio provides more than 200 Mbps of real user throughput. Using 2x2 MIMO-OFDM technologies, ePMP deployments achieve industry leading data rates.
ePMP 2000 Smart Antenna Specifications | |
---|---|
Spectrum | |
Channel Spacing | 5150 – 5970 MHz (exact frequencies as allowed by local regulations) |
Frequency Range | 5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations) |
Channel Width | 5 | 10 | 20 | 40 MHz |
Interface | |
MAC (Media Access Control) Layer | Cambium Proprietary |
Physical Layer | 2x2 MIMO/OFDM |
Ethernet Interface | 100/1000BaseT, rate auto negotiated (802.3af compliant) |
Powering Methods Supported | 30V PoE Supply (included), CMM3 & CMM4, 802.3af PoE Supply |
Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
VLAN | 802.1Q with 802.1p priority |
Performance | |
Subscribers per Sector | Up to 120 |
ARQ | Yes |
Nominal Receive sSnsitivity (w/FEC) @ 20MHz Channel | MCS0 = -93 dBm to MCS15 = -69 dBm (per branch) |
Nominal Receive Sensitivity (w/FEC) @ 40MHz Channel | MCS0 = -90 dBm to MCS15 = -66 dBm (per branch) |
Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS15 (64QAM 5/6) |
Latency | Up to 20ms |
GPS Synchronization | Yes, via Internal GPS, CMM3, or CMM4 |
Quality of Service | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Addr, Broadcast, Multicast and Station Priority |
Link Budget | |
Antenna | Sector Antennas available |
Transmit Power Range | 17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
Physical | |
Antenna Connection | 50 ohm, RP (Reverse Polarity) SMA |
Surge Suppression | 1 Joule Integrated |
Environmental | IP55 |
Temperature | -30°C to +60°C (-22°F to +140°F) |
Weight | 5.1 kg (10 lbs) with antenna 0.52 kg (1.1 lbs) without antenna |
Wind Survival | 145 km/hour (90 mi/hour) with antenna |
Dimensions (H x W x D) | Radio: 26.9 x 11 x 7.7 cm (10.6 x 4.3 x 3.0 in) Antenna (incl brackets): 80cm x 22.5cm x 24cm (31.5 x 8.9 x 9.4 in) |
Power Consumption (over 100m CAT5 cable) | 10 W Maximum, 7.5 W Typical |
Input Voltage | 23 to 56 V |
Security | |
Encryption | 128-bit AES (CCMP mode) |
Certifications | |
FCCID | 5 GHz : Z8H89FT0012 |
Industry Canada Cert | 5 GHz : 109W-0012 |
CE | 5.4 GHz EN 301 893 V2.1.1 5.8 GHz EN 302 502 V2.1.1 |
