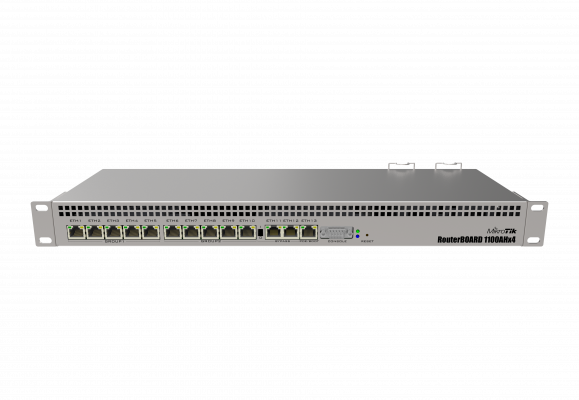

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
The MikroTik RB1100AHx4 uses a quad-core Cortex A15 chip from Annapurna labs, clocked at 1.4GHz, for a maximum throughput of up to 7.5Gbit.
Includes two IEC failover power connectors, supports passive or 802.3at/af PoE input and has a DC telecom power connector for -48VDC powering.
Product Specifications
• CPU: AL21400, 4 cores, 1.4GHz
• Size of RAM: 1GB
• Storage Type: NAND
• Storage Size: 128MB
• 10/100/1000 Ethernet ports: 13
• Ethernet Bypass: Ethernet 11/12
• Power Jack: 2 x IEC. 100 - 240V
• DC Telecom Power: 20 - 57V (-48V supported)
• PoE Input: Passive, 802.3at 20-57V
• Redundant Power Supply: Yes
• Voltage Monitor: Yes
• PCB Temperature Monitor: Yes
• Current Monitor: Yes
• Operating System: RouterOS, level 6 license
• Max. Power Consumption: 20W
• Serial Port: RS232
• Beeper: Yes
| Details |
|---|
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 443 x 148 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| PoE in | 802.3af/at |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $299.00 |
Powering
| Details |
|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| FAN count | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 13 |
Peripherals
| Details |
|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial port | RS232 |
Other
| Details |
|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Product Includes
- (1) RB1100AHx4
- (1) K-46 Screw Kit
- (2) Rack Ears
- (2) IEC Cords
