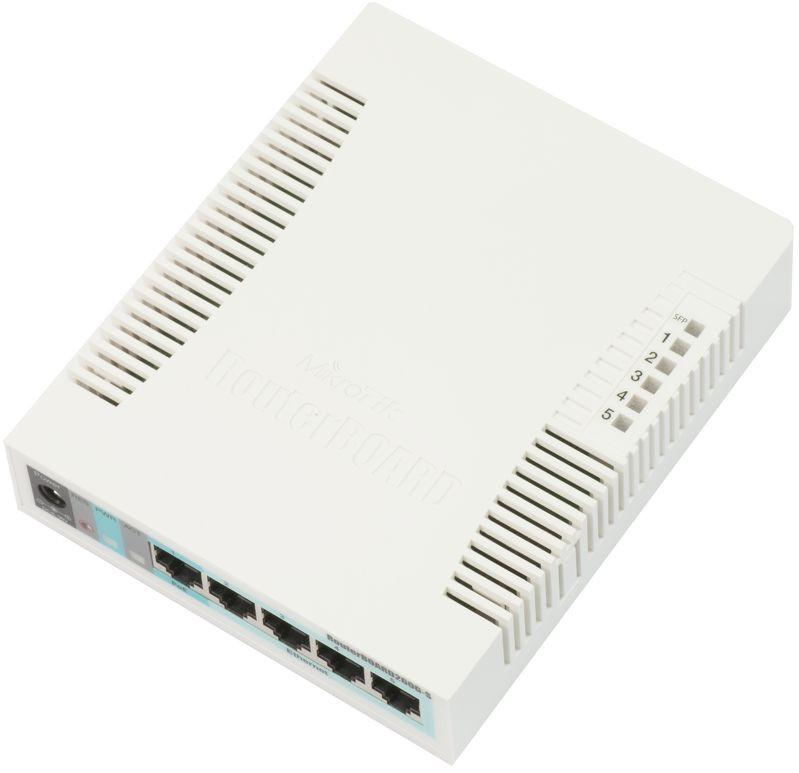

The RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
It is powered by an operating system designed specifically for MikroTik Switch products - SwOS.
SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
Product Overview
• Smart Switch
• Small and Compact
• Plastic Case
• Five Gigabit ports
• Web interface controlled
Product Specifications
• CPU: Taifatech TF470
• Memory: Embedded 96K SRAM
• Ethernet: (5) 10/100/1000 Ethernet ports, Atheros switch AR8327, (1) fixed Gigabit Ethernet SFP cage (Mini-GBIC; SFP module not included)
• Power Options: PoE: 8-30V DC on Ether1 (non 802.3af). Jack: 8-30V DC
• Power Consumption: Up to 6W
• Operating Temperature: -13°F to 149°F (-25°C to 65°C)
• Weight: 0.31 lbs (142g) without packaging and cables
Specifications
| Details |
|---|
| Product code | CSS106-5G-1S |
| Dimensions | 113x139x28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $39.95 |
Powering
| Details |
|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 5 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details |
|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Certification & Approvals
| Details |
|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
)
