The RB2011 is a low cost multi port device series, powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

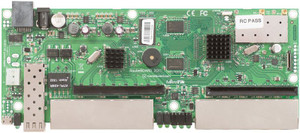

RouterBOARD 2011UiAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful 1000mW dual chain 2.4Ghz 802.11bgn wireless onboard, RJ45 serial port, microUSB port and RouterOS L5 license.
There are two MMCX connectors for adding external antennas, so you can create powerful dual chain wireless backbone, AP or CPE unit.
There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
Specifications
| Details |
|---|
| Product code | RB2011UiAS-2HnD-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 214mm x 86mm for PCB |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $129.00 |
Wireless capabilities
| Details |
|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details |
|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Peripherals
| Details |
|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Powering
| Details |
|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 11 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
PoE-out
| Details |
|---|
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 510 mA |
| Max total out (A) | 510 mA |
Certification & Approvals
| Details |
|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 30 | -96 |
| 11MBit/s | 28 | -80 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -92 |
| MCS7 | 25 | -73 |
Included parts:
)
