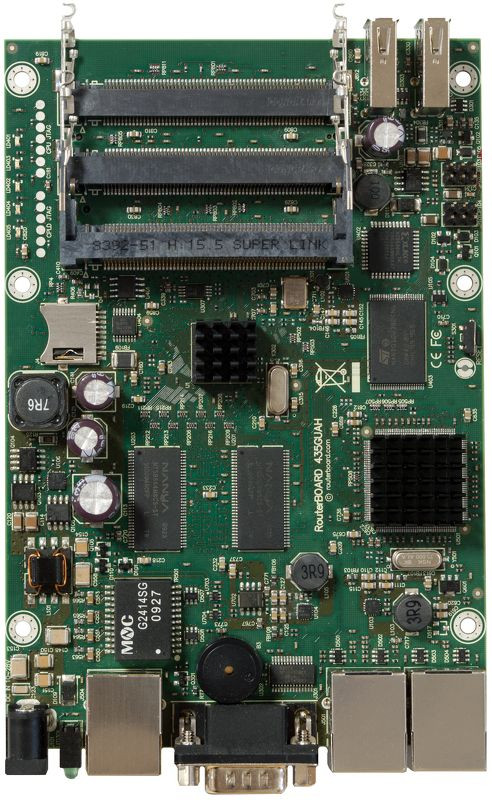

Product Description
Five miniPCI slots and three Gigabit Ethernet ports give you enough connectivity options to use the RB435G as the central part of your network. Now with Gigabit ports, to properly utilize all the speed 802.11n with Nv2 wireless.
Five miniPCI slots to be used for four sectors and a backbone, or any other configuration you need- RB435G has largest number of miniPCI slots from all our products. If you need to utilize many miniPCI cards - RB435G is your choice!
The two USB 2.0 ports can be used for extending storage, adding a 3G wireless modem for backup connectivity,for a mobile installation or all together.
Product specifications
| Details | |
|---|---|
| Product code | RB435G |
| CPU nominal frequency | 680 MHz |
| CPU core count | 1 |
| Architecture | MIPS-BE |
| Size of RAM | 256 MB |
| 10/100 Ethernet ports | 0 |
| 10/100/1000 Ethernet ports | 3 |
| MiniPCI slots | 5 |
| MiniPCI-e slots | 0 |
| Wireless chip model | None |
| Number of USB ports | 2 |
| Memory Cards | 1 |
| Memory card type | microSD |
| Power Jack | 1 |
| 802.3af support | No |
| PoE in | Yes |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | No |
| Dimensions | 105mm x 154mm |
| Operating System | RouterOS |
| Operating temperature range | -30C to +60C |
| License level | 5 |
| Antenna gain DBI | No |
| Current Monitor | Yes |
| CPU | AR7161-BC1A |
| SFP ports | 0 |
| SFP+ ports | 0 |
| USB slot type | USB type A |
| Number of chains | 0 |
| Serial port | RS232 |
