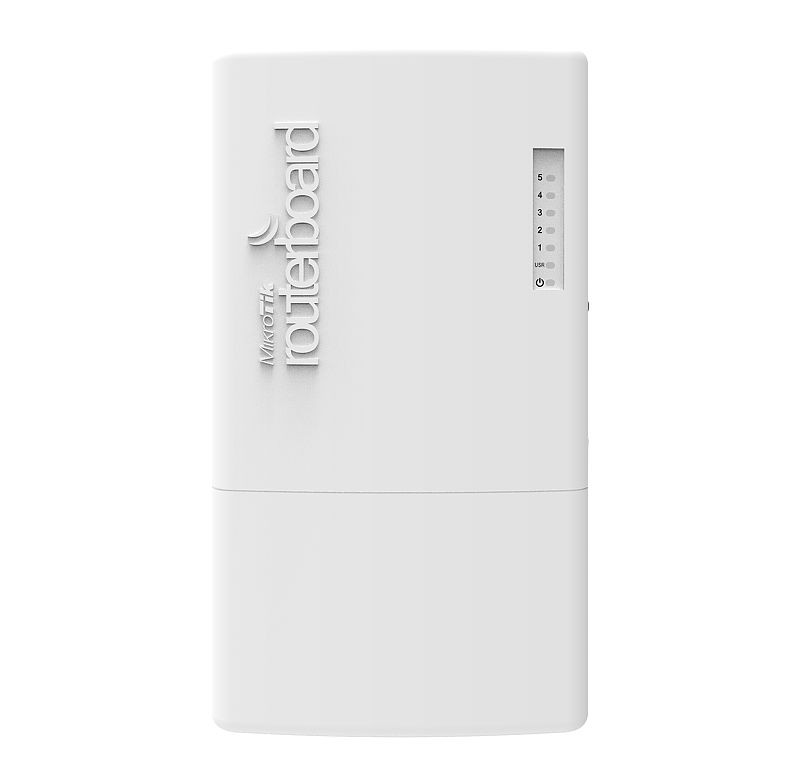

The Fiberbox is an outdoor switch with five SFP ports, ideal for locations where distance is restricting the use of regular ethernet cables. The device is weatherproof and comes with a hose clamp and zip ties, ready to be installed on high masts and towers.
The package also includes the RJ45 SFP (S-RJ01) copper module already preinstalled in the first port, so you can use ethernet in one of the ports already out of the box. If not needed, remove it to have access to all five SFP ports for using with 1.25 Gbit fiber modules.
Product Specifications
- CPU: QCA8511 400 MHz
- RAM: 128 MB
- Storage type: Flash
- Storage size: 16 MB
- SFP: 5x 1.25G Ethernet SFP cage (Mini-GBIC); DDMI supported; One S-RJ01 Rj45 SFP module included.
- PoE in: Yes
- License level: 5
- Operating temperature: -20 to 70° C
- OS: RouterOS
- Max Power consumption: 11 W
- LEDs: 9x LEDs (1x user LED)
| Details |
|---|
| Product code | CRS105-5S-FB |
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Dimensions | 125 x 178 x 48 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $79.00 |
Powering
| Details |
|---|
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 9-30 V |
| Max power consumption | 11 W |
| FAN count | Passive |
Fiber
Other
Certification & Approvals
| Details |
|---|
| Certification | CE, EAC, ROHS |
Included parts
- RJ45 SFP coper module
- 24V 0.8A power adapter
- Metal ring (one)
- DIN mount (K-27)
)
