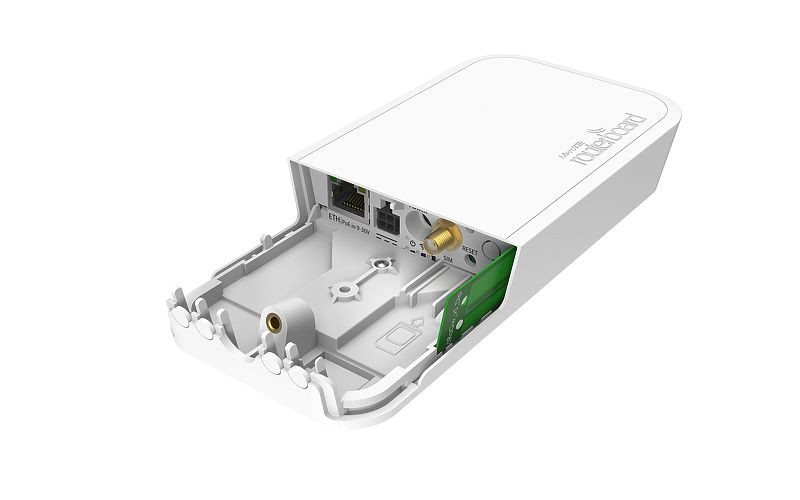

wAP LR8 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.
You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.
wAP LR8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.
Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR8 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.
| Product code | RBwAPR-2nD&R11e-LR8 |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| RouterOS license | 4 |
| PoE in | Passive PoE |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $169.00 |
Powering
| Details |
|---|
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 9-30 V |
| Automotive input Voltage | 9-30 V |
| Max power consumption | 7 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 9-30 V |
Wireless specifications
| Details |
|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details |
|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 54 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Included parts
- 24V 0.8A power adapter
- PoE injector
- 0.35m 4pin Automotive adapter cable
- wAP desktop stand
- wAP mount bracket
- Metal ring (one)
)
