Product Description

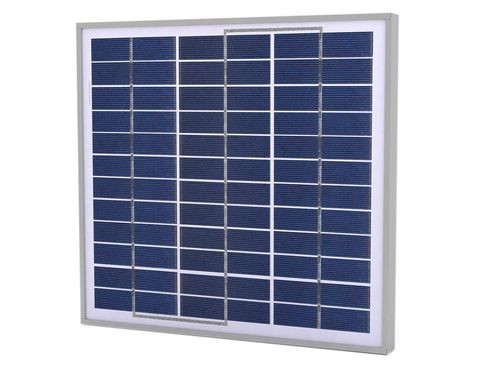

The TPS series solar panels are high efficiency designs with excellent low light performance. The multicrystalline silicon solar cells from Germany are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life. The cell array is sealed in a heavy duty extruded aluminum frame with a high transparency low iron tempered glass cover to protect the solar cells from harsh environments; hail, wind, snow and ice.
The solar panels are easy to mount because of the aluminum frame design. The wired connections are via a weatherproof junction box on the back of the panels.
Key Features:
- 24V 30W Solar Panel with 25 Year out Warranty
- Excellent Low Light Performance
- High Efficiency with High Transparency Low Iron Tempered Glass
- Rugged Extruded and Anodized Aluminum Frame, Fully Sealed
- Sealed Junction Box for Wire Connections
Features
- Outstanding Low Light Performance
- Solar cells laminated with TPT/EVA bi-layer for long life. 25 year solar cell output warranty
- High Efficiency with high transparency low iron tempered glass cover. Rugged extruded anodized aluminum frame
- Sealed for protection from harsh environments
- Enclosed junction box for wired connections
- Industrial Temperature Range -40C to 85C (-40F to 185F)
Applications
- Battery Charging Applications
- Surveillance Cameras
- Wireless Base Stations
- Outdoor Lighting
- Remote Sensors
- Backup Power Systems
Specs
| Maximum Power (+/-5%) | 30W |
| Voltage at Pmax (Vmp) | 34.4V |
| Current at Pmax (Imp) | 0.87A |
| Open Circuit Voltage (Voc) | 43.2V |
| Short Circuit Current (Isc) | 0.97A |
| Short Circuit I Temp Coeff | .065% / °C |
| Open Circuit V Temp Coeff | -80mV / °C |
| Output Power Temp Coeff | -0.5%/°C |
| Wind Survivability | 201kph (125mph) |
| Hailstone Survivability | 1” @ 50mph |
| Operating Temperature | -40 to +85°C |
| Continuous Power Capability (6hrs average sunlight per day) | 8W |
| Size | 541 x 510 x 30mm (21.3 x 20 x 1.2”) |
| Weight | 3.8kg (8.4lb) |
| Warranty | 5 Year Product / 25 Year Output |
