Product Description
The UPSPro® series outdoor systems are designed for applications that require a backup power source in order to maintain uninterrupted service in the event of AC power failure. The system is powered over a CAT5 network cable via Power over Ethernet (PoE) using a Power Supply and PoE Inserter (included). Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.
There is a small amount of space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is the main cause of outdoor equipment failure.
Models are equipped with a Solar Ready controller so they can also be powered using solar panels in addition to or instead of the Power Supply and PoE Inserter.
A typical 250mW wireless access point with average power consumption of 3.5W will run 24 hours on a 8.5Ah battery at room temperature or 16 hours at -20 deg C.
Key Features:
- UPSPro 12V 9Ah 108Wh outdoor UPSPro, 24V 30W PoE Load out, Passive PoE Powered
- 12V 8A PWM PoE Powered Charge Controller with Load Controlled 24V 30W Passive PoE out + 12V 1.5A Aux out
- Includes 120/240VAC 24VDC 90WPassive PoE Inserter

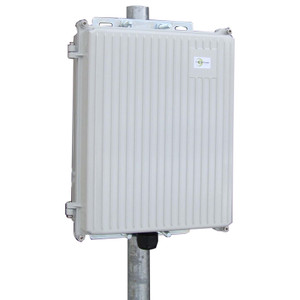

- 1-1.6" Pole/Wall Mount Weatherpoof Die Cast Aluminum Enclosure with Gasketed Hinged Lid
- Remotely Powered over CAT5/6 Cableoutdoor UPSPro
Features
- Weatherproof, UV resistant, outdoor enclosures
- Powered over CAT5 cable using Passive POE and/or Solar
- Wall or Pole Mounting
- Isolates Customer Equipment from Power Line Surges
- High Quality AGM VR Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Mission critical outdoor power
- Backup Power Systems
Specs
| POE Output Voltage Available (DC) | 24V |
| Available Capacities (Amp Hours) | 8.5Ah |
| Total Output Power | 30W |
| Maximum POE Input Voltage | 57V |
| Battery Voltage (DC) | 12V |
| Battery Type | Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
| Battery Life | 5 Years |
| Controller Type | Dual Input Solar/POE, PWM, 12V 8A Max Solar Panel Size 135W |
| Overcharge Protection | 14.4V |
| Over-discharge protection | 11.0V |
| Over-discharge recovery voltage | 12.0V |
| Controller Self Consumption | <0.5W |
| Charging POE Power Supply | 120/220VAC In ; 24VDC 60W Out |
| Enclosure Type | Die Cast Aluminum |
| Enclosure External Size | 11 x 8.5 x 3.5” (279 x 216 x 89mm) |
| Enclosure Internal Size | 10 x 7.75 x 3” (254 x 197 x 76mm) |
| Space available for Customer Electronics | 7.75 x 5 x 1.25” (197 x 127 x 32mm) |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (without batteries) | 4lb (1.8kg) |
| Battery Weight (each) | 5.5lb (2.5kg) |
| Warranty | 3 Years |
