Product Description
Key Features:
- UPSPro 24V 9Ah 216Wh outdoor UPSPro, 48V 30W PoE Load out, Passive PoE Powered
- 24V 8A PWM PoE Powered Charge Controller with Load Controlled 48V 30W Passive PoE out + 24V 1.5A Aux out
- Includes 120/240VAC 36VDC 90WPassive PoE Inserter
- 2-4" Pole/Wall Mount Weatherpoof Lockable UV Resistant Polycarbonate Enclosure with Gasketed Hinged Lid
- Remotely Powered over CAT5/6 Cableoutdoor UPSPro
Features
• Weatherproof, UV resistant, outdoor enclosures
• Powered over CAT5 cable using Passive POE and/or Solar
• Generous interior space for customer electronics
• Wall or Pole Mounting
• Isolates Customer Equipment from Power Line Surges
• High Quality AGM VR Sealed Lead Acid Batteries
• Advanced battery charge controller protects against overcharge and over discharge
Applications
• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Mission critical outdoor power
• Backup Power Systems

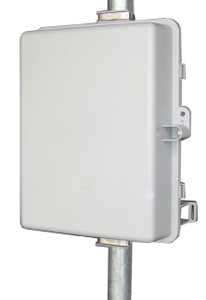

The UPSPro series outdoor systems are designed for applications that require a backup power source in order to maintain uninterrupted service in the event of AC power failure. The system is powered over a CAT5 network cable via Power over Ethernet (PoE) using a Power Supply and PoE Inserter (included). Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.
There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is the main cause of outdoor equipment failure.
Models are equipped with a Solar Ready controller so they can also be powered using solar panels in addition to or instead of the Power Supply and PoE Inserter.
A typical 250mW wireless access point with average power consumption of 3.5W will run 24 hours on a 8.5Ah battery at room temperature or 16 hours at -20 deg C.
