Product Description

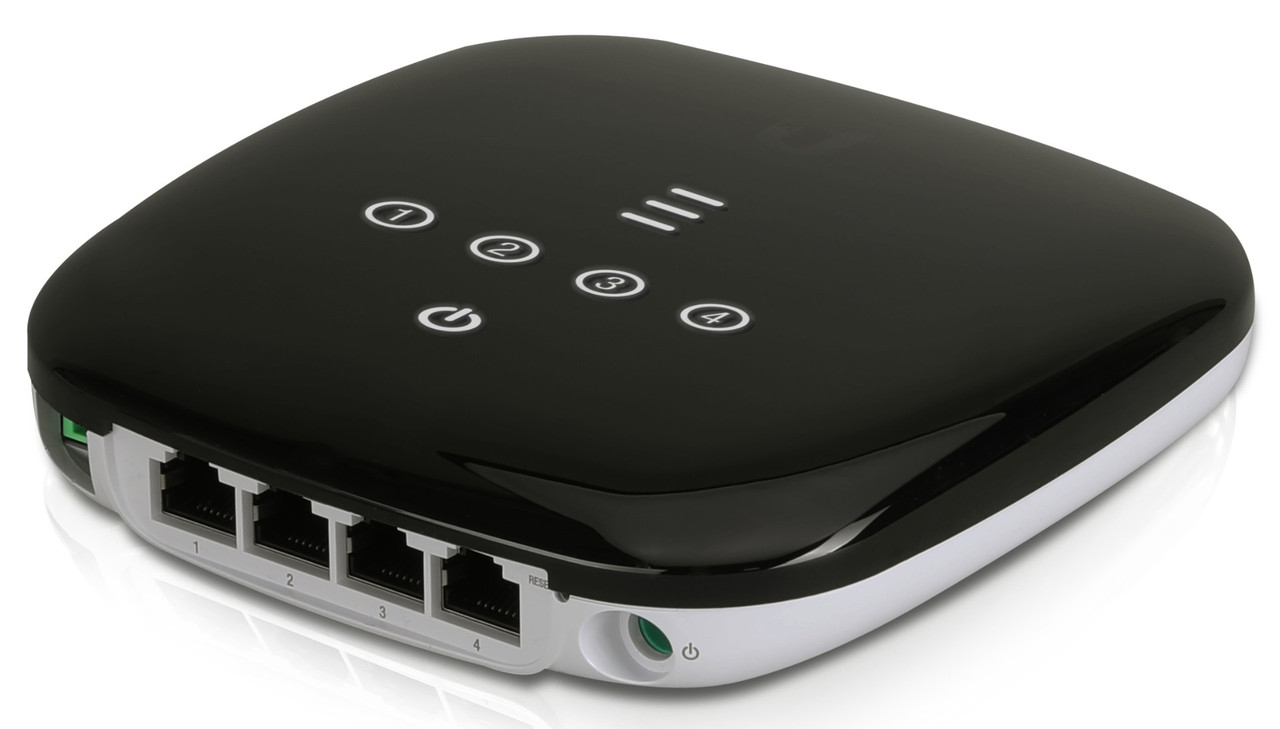

Featuring a sleek design, the UFiber GPON 300 Mb/s Wireless Gigabit Router from Ubiquiti Networks is designed to deliver high performance routing when connected to a compatible Gigabit Passive Optical Network (GPON) device. This CPE router features an SC/APC type GPON WAN connector with up to 2.4 Gb/s downstream and 1.2 Gb/s upstream speeds, supporting up to 12.4-mile physical GPON links. The convenient LEDs let you know at a glance how strong your optical signal strength is and if you should check the connections. There are also four RJ45 Gigabit Ethernet ports for connecting wired devices in addition to support for 802.11n Wi-Fi, which can wirelessly transfer up to 300 Mb/s with compatible devices. The UFiber GPON can be powered using the included AC adapter or through passive PoE when connected to compatible devices. Wall-mounting screws and anchors are also included.
UNMS Controller Software
Key Features
- Wi-Fi 4 (802.11n)
- Up to 300 Mb/s Wireless Throughput
- 4 x Gigabit Ethernet LAN Ports
- 1 x SC/APC GPON WAN Port
- Up to 2.4 Gb/s Down / 1.2 Gb/s Up WAN
- Supports up to 12.4-Mile GPON Links
- Optical Signal Strength LEDs
- Powered by PSU or Passive PoE
- Supports UNMS Controller Software
| Status LEDs The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power. |  |
 | Versatile Power The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC. |
PRODUCT SPECIFICATIONS
| UFiber UF-WiFi | |
|---|---|
| Dimensions | 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25") |
| Weight | 190 g (6.70 oz) |
| Networking Interfaces | (1) SC/APC, GPON WAN (4) Gigabit RJ45, Ethernet LAN (1) Wi-Fi, 802.11n |
| Networking Interface Speeds GPON WAN, ITU G.984 LAN Wi-Fi | 2.4 Gbps Down, 1.2 Gbps Up 10/100/1000 Mbps 300 Mbps |
| Management Interface | In-Band Ethernet PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm |
| Power Method | DC Jack, 24VDC 24V Passive PoE (Pins 4, 5+; 7, 8-) |
| Power Supply | 100-240VAC / 50-60 Hz Universal AC/DC 24V / 0.5A |
| Max. Power Consumption | 7W |
| Supported Voltage Range | 20 to 28V |
| Processor Specs | MIPS, 900 MHz |
| Memory Information | 256 MB DDR |
| Button | (1) Reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
